What is a Lubrication Pump? Why is it Used in CNC Linear Guide Rail and Ball Screw Systems?
📑 Table of contents (Click to open)
A lubrication pump is a vital component in CNC linear guide rail and ball screw systems. It reduces friction, prevents wear, and increases precision and lifespan by providing automatic lubrication. This lowers maintenance costs, improves energy efficiency, and optimizes machine performance.
Practical notes for CNC router, automation and industrial motion systems.

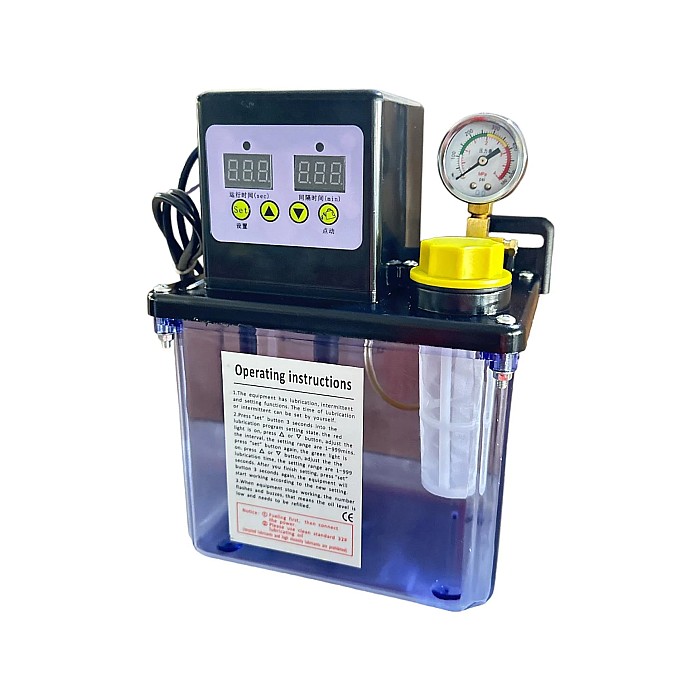

At the heart of industrial automation, CNC (Computer Numerical Control) machines are fundamental to production processes requiring high precision, speed, and repeatability. Two of the most critical moving components in these machines are the linear guide rails (rail systems) that ensure smooth axis movement, and the ball screws (spindle systems) that precisely position the cutting tool or workpiece with sub-millimeter accuracy. For these vital parts to operate smoothly and have a long service life, they require continuous and adequate lubrication. This is where lubrication pumps come into play. A lubrication pump is a mechanical or electromechanical device that delivers a predetermined amount of lubricant (oil or grease) to critical moving points of the machine, such as guide rails, ball screws, and bearings, either on a set schedule or continuously. The primary reason for their use in CNC systems is to maintain optimal performance under conditions of high speed, heavy load, and continuous operation. Insufficient or incorrect lubrication increases friction, leading to overheating, wear, loss of precision, and ultimately, costly failures. Lubrication pumps significantly minimize these risks, thereby enhancing the machine’s efficiency, reliability, and lifespan.
Operating Principle and Technical Data
The operating principle of lubrication pumps is fundamentally based on transferring lubricant from a reservoir to the lubrication points under specific pressure via distribution lines. While various types exist, automated and programmable systems are typically preferred for CNC applications. These systems are managed by a control unit (PLC or integrated controller) and perform the lubrication process at specific intervals or in conjunction with machine operating cycles. The pump mechanism is usually gear, piston, or lobe-type, drawing lubricant from the reservoir and pressurizing it. The pressurized lubricant is sent to the main distribution line and then, typically through a progressive distributor or a volumetric dosing unit, to each lubrication point in precise, equal amounts. Progressive distributors ensure sequential flow, meaning lubricant cannot reach one point without passing through the previous one, simplifying the assurance that all points are lubricated. On surfaces subjected to friction, such as ball screws and linear guide rails, the lubricant forms a film layer that prevents metal-to-metal contact. This film layer minimizes friction, reduces heat generation, and delays wear. Furthermore, the lubricant helps clean the system by flushing out small contaminant particles and metal chips, contributing to system cleanliness. Modern lubrication systems are equipped with oil level, pressure, and flow sensors, enabling real-time monitoring and fault detection. These sensors report any abnormality in the lubrication system to the machine control system, allowing the operator or maintenance team to intervene promptly. A correctly selected lubrication pump and system not only extend the life of the CNC machine but also directly impact the consistency of part production quality and energy efficiency.
| Parameter | Value/Description |
|---|---|
| Pump Type | Typically piston or gear type; automatic, programmable. |
| Lubricant Medium | Mineral or synthetic oils (ISO VG 32-220), NGLI 000-2 class greases. |
| Operating Pressure | Can range from 50 bar to 350 bar (depending on application). |
| Tank Capacity | From 0.5 liters to 20 liters or more (depending on machine size). |
| Control System | Internal timer, PLC integration, machine control unit connection. |
| Distribution Type | Progressive distributors, parallel metering units. |
| Application Areas | CNC lathes, milling machines, machining centers, grinding machines, robotic systems. |
| Sensors | Oil level, pressure, flow sensors (optional). |
Important Considerations in Practice
- Correct Lubricant Selection and Quality: Choosing the right lubricant for CNC linear guide rails and ball screws is crucial. Oils or greases with the appropriate viscosity and additives (EP – extreme pressure, anti-wear, anti-corrosion) as specified by the manufacturer must be used. Mixing different lubricant types can lead to chemical reactions or loss of lubricating properties. Low-quality or contaminated lubricants can cause sediment buildup, clogged filters, and pump failures. Therefore, only certified products from reliable suppliers should be used.
- Periodic Maintenance and Cleaning: The lubrication pump and distribution system require regular inspection and maintenance. The oil level in the tank must be constantly monitored and replenished as needed. Filters should be cleaned or replaced at specified intervals, as clogged filters can overload the pump and restrict oil flow. Hoses, connectors, and distributor blocks should be checked for leaks, cracks, or blockages. Periodic complete draining and cleaning of the tank are important to remove accumulated sediment and contaminants.
- System Settings and Calibration: Lubrication pump settings (lubrication cycle time, quantity, pressure) must be adjusted according to the machine manufacturer’s recommendations and operating conditions. Over-lubrication leads to waste, while under-lubrication causes wear of critical components. Especially for newly installed or post-maintenance systems, visual checks and calibration, if necessary, should be performed to ensure adequate lubricant reaches the lubrication points. Factors such as ambient temperature, machine speed, and load should be considered when optimizing lubrication settings.
- Sensor Monitoring and Alarm Systems: Modern lubrication systems are often equipped with oil level, pressure, and flow sensors. Ensure these sensors are functioning correctly and transmitting accurate signals to the machine’s control system (PLC). In case of any abnormality (low oil level, pressure drop, loss of flow), the system should automatically trigger an alarm or switch the machine to a safe mode to prevent major failures. Regular testing and cleaning of sensors will prevent false readings.
- Correct Installation and Line Connections: Proper installation of the lubrication pump and distribution system directly impacts system performance. Laying hoses and pipes without kinks, tension, or sharp bends reduces flow resistance and minimizes the risk of leaks. Ensure all connection points are leak-free. Incorrect installation or damaged lines can lead to a drop in lubrication pressure or failure to deliver lubricant to specific points.
- Management of Environmental Factors: Environmental factors such as dust, humidity, and temperature fluctuations in the operating area of CNC machines can affect the lubrication system. Protection of lubrication points and pumps from external elements is important, especially in dusty environments. High humidity can degrade lubricant properties or cause corrosion. Extreme temperatures can reduce lubricant viscosity, leading to a thinner lubricating film. Therefore, lubricants and system protection measures suitable for the operating environment conditions should be implemented.
By ensuring proper lubrication through these advanced pump systems, CNC machines can achieve their full potential in terms of accuracy, speed, and longevity. Investing in a reliable lubrication system is investing in the productivity and profitability of your manufacturing operations.
